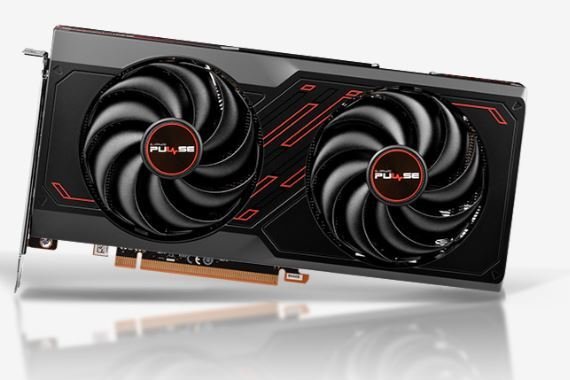

GPU AMD Radeon™ RX 7600 Graphics Card AMD RDNA™ 3 Architecture
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2755 MHz
Game Clock: Up to 2355 MHz
Boost Clock is the maximum frequency achievable on the GPU running
bursty workload. Boost clock achievability frequency and sustainabilty
will vary based on several factors including but not limited to: thermal
conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP Total Graphics Power. Actual individual
game clock results may vary.
Stream Processors
2048
Compute Units
32 CU
Infinity Cache
32MB
Ray Accelerators
32
Memory Size Bus
8GB 128 bit GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 1.4: 7680×4320
Interface
PCI-Express 4.0 x8
Output
1x HDMI
3x DisplayPort
BIOS Support
UEFI
Game Index
1080P Ultimate
Sapphire Features
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Two-Ball Bearing Fans
Optimized Composite Heatpipe
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA 3 Architecture
DirectX 12 Ultimate
AMD Smart Access Memory
AMD Infinity Cache
PCI Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort 1.4 with DSC
HDMI
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Software: Adrenalin Edition™ Technology
Game Driver Optimizations
Cooling
2 Fans
Form Factor
2 slot, ATX
Dimension: 240L X 107.1W X 44.07 H mm
Power Consumption
185W Total Board Power
OS
Linux® Windows® 10 and Windows 11. 64-bit  operating system required
System Requirement
Minimum 550 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot
available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
