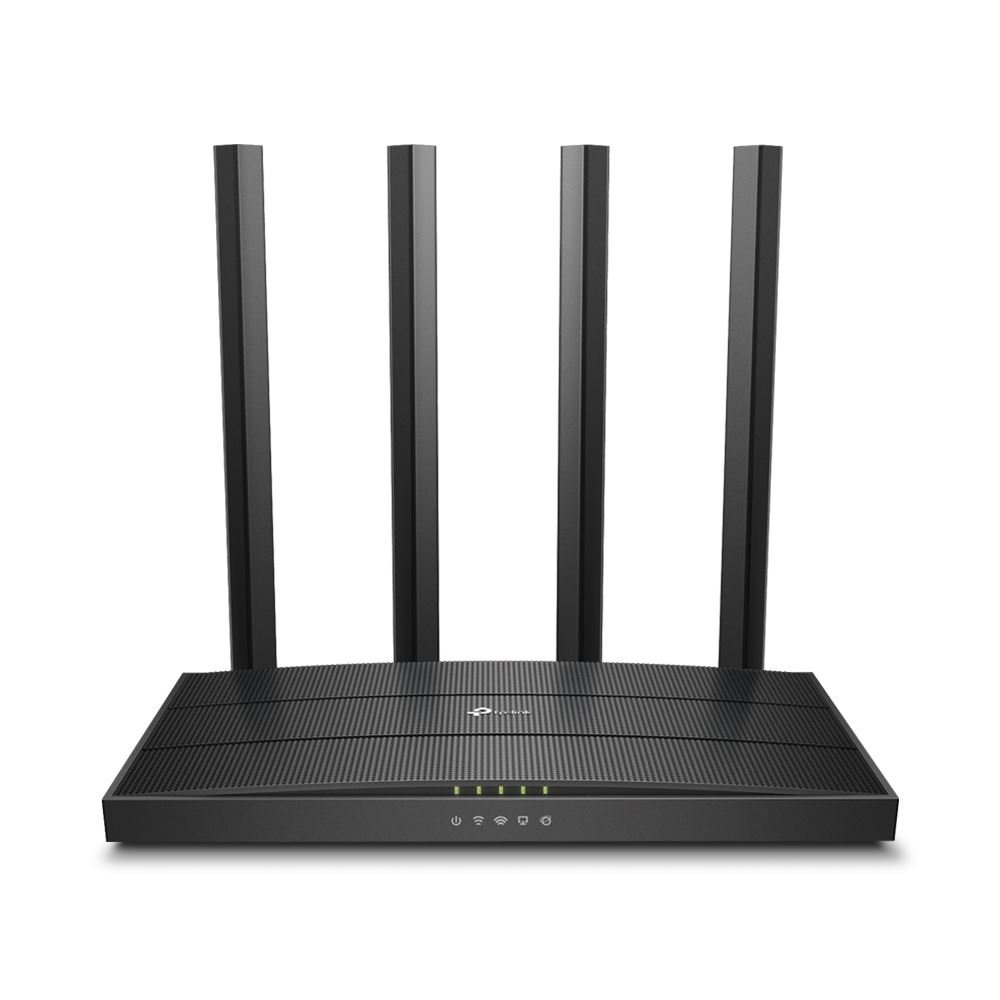

AC1200 Dual-Band Wi-Fi Router
WIRELESS
Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions
and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi
range
WiFi Capacity:Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes: Router Mode
Access Point Mode
HARDWARE
Processor: Dual-Core CPU
Ethernet Ports:1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons:WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power:12 V ? 1 A
SECURITY
WiFi Encryption:WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security:SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network: 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server:OpenVPN
PPTP
SOFTWARE
Protocols: IPv4
IPv6
OneMesh™: OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi
ecosystem, OneMesh™ helps you create a more flexible network that covers
your entire home with TP-Link OneMesh™ products.
All OneMesh Products>
Parental Controls: URL Filtering
Time Controls
WAN Types:Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service:QoS by Device
NAT Forwarding:Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP:Address Reservation
DHCP Client List
Server
DDNS: TP-Link
NO-IP
DynDNS
Management: Tether App
Webpage
OTHER
System Requirements.Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+,
Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power: CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity: 5GHz:
11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
PHYSICAL
Dimensions (W×D×H): 8.5 × 4.6 × 1.2 in
(215 × 117 × 32 mm)
Package Contents: Wi-Fi Router Archer A6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
